Radare2 is a powerful open-source reverse engineering tool. This guide will cover the basics of reverse engineering with r2.
This guide is based on a guide I wrote while working in university. It focuses on the basics of reversing and using r2.
The binary for this guide can be found on my GitHub: https://github.com/saadams/crackme_plz/tree/main/rev_ex1
The goal of this reversing challenge is to determine the correct input that will output the flag.
Let’s get started.
First, open the binary in r2 using r2 <name of file>.

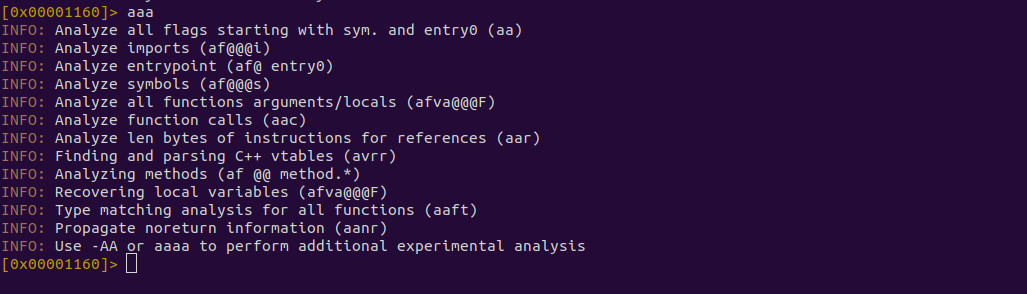

Next, use aaa to analyze the functions and symbols.

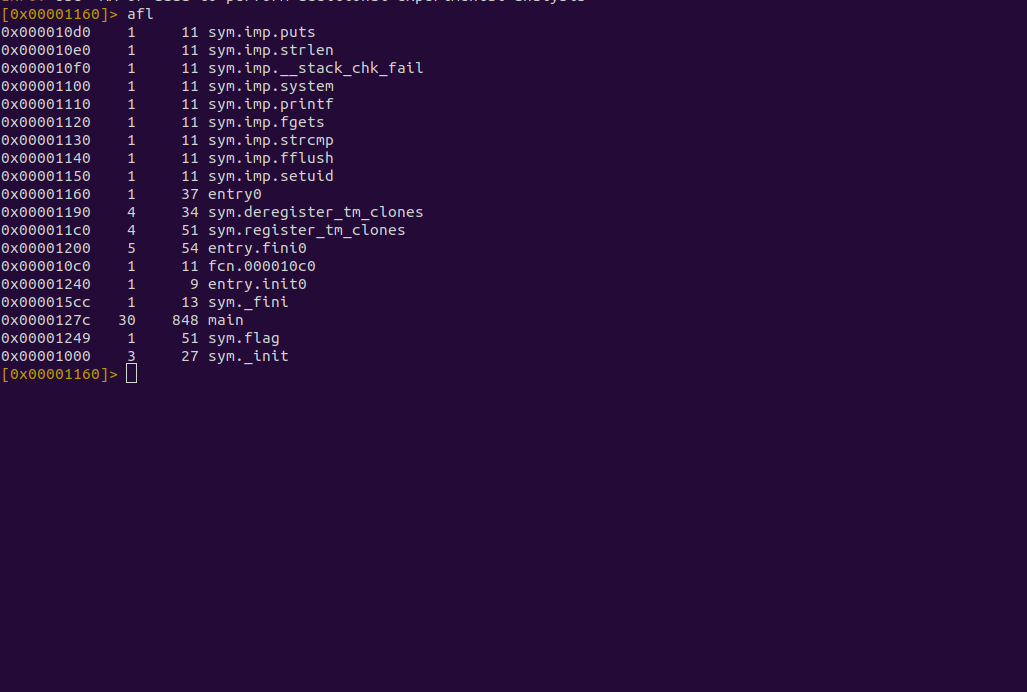

Next, type afl to print all the functions.

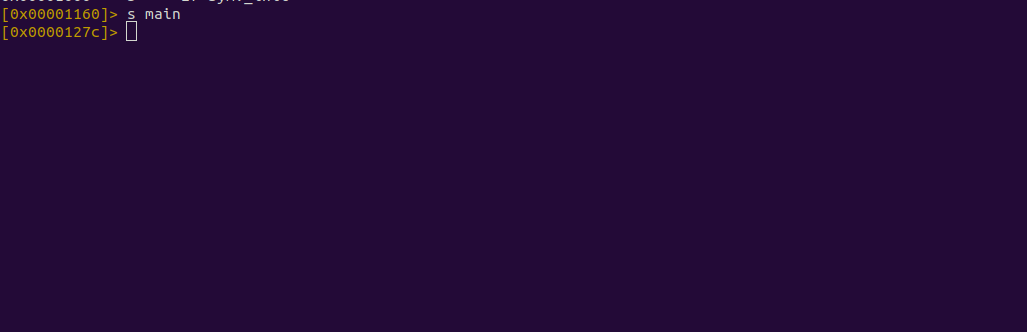

We can see there is a main function, so let’s seek to it using s <function name>.

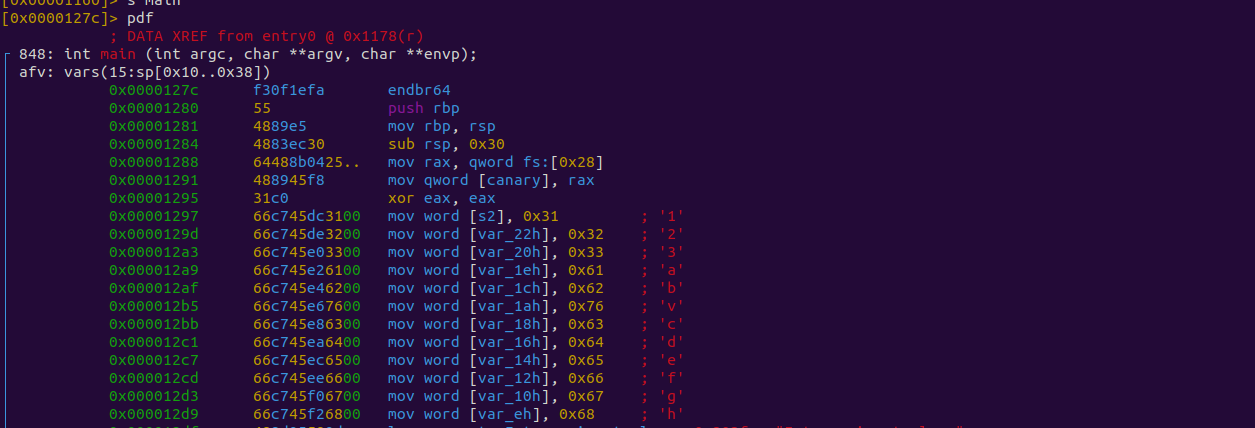

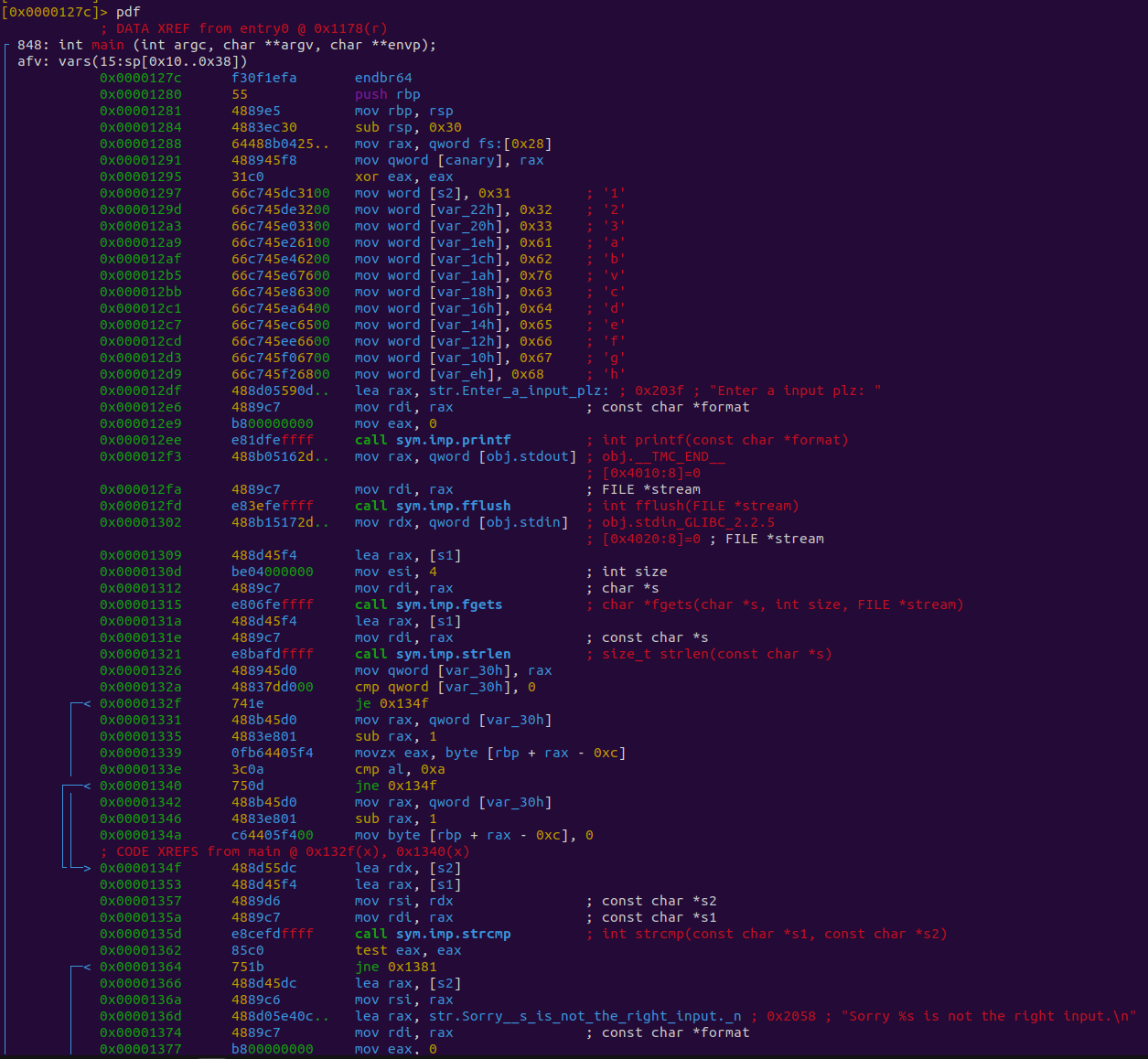

Now we can use pdf to print the disassembled function.
From here, we can start to examine the program.
At the top, we can see all the variable info for the function.

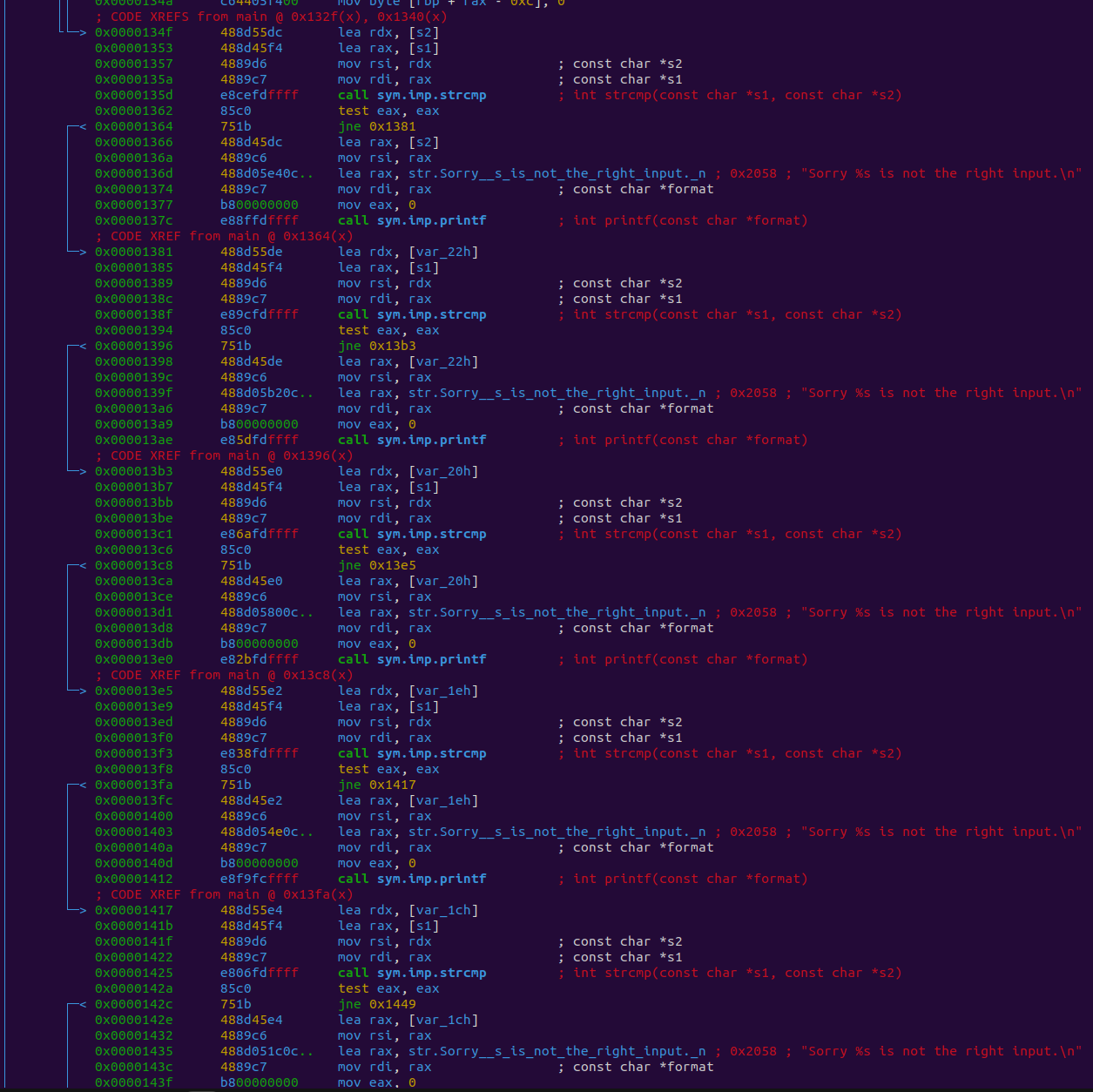

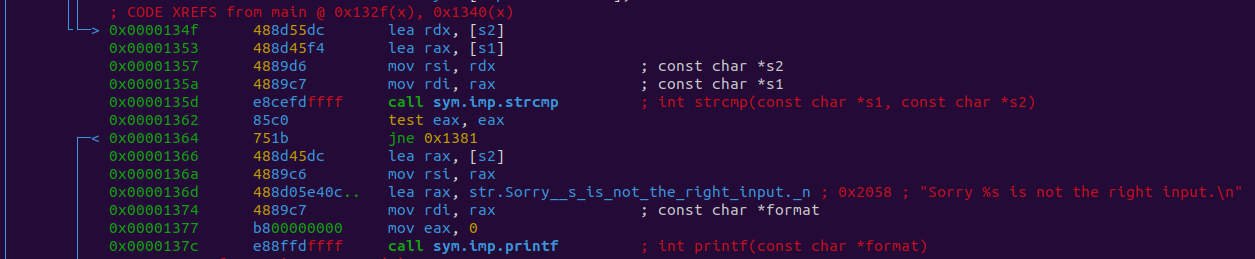

Scrolling down further, we can see various jmps and strcmp calls. This is probably a good place to start.
Let’s walk through the first one.
1
2
3
4
5
6
7
| 0x0000134f 488d55dc lea rdx, [s2]
│ 0x00001353 488d45f4 lea rax, [s1]
│ 0x00001357 4889d6 mov rsi, rdx ; const char *s2
│ 0x0000135a 4889c7 mov rdi, rax ; const char *s1
│ 0x0000135d e8cefdffff call sym.imp.strcmp ; int strcmp(const char *s1, const char *s2)
│ 0x00001362 85c0 test eax, eax
│ 0x00001364 751b jne 0x1381
First, we have these two lines. These first instructions are used to load s2 and s1 into registers rax and rdx.
1
2
0x0000134f 488d55dc lea rdx, [s2] ; Load s2 into rdx
0x00001353 488d45f4 lea rax, [s1]; Load s1 into rax
Next, we have two more lines moving the registers rax and rdx into rsi and rdi. These are the params passed to strcmp.
1
2
0x00001357 4889d6 mov rsi, rdx ; const char *s2
0x0000135a 4889c7 mov rdi, rax ; const char *s1
Next is the strcmp call. First, we have the call to strcmp which is going to compare the two params that were passed in the previous instructions. It will return either -1, 0, or 1. If the values are equal, it will be 0.
Next, test eax, eax is basically checking whether or not eax is 0 without storing the result in a register and instead will set the zf (zero flag).
Last, jne 0x1381 will jump if the values are not zero.
1
2
3
4
0x0000135d e8cefdffff call sym.imp.strcmp ; int strcmp(const char *s1, const char *s2)
0x00001362 85c0 test eax, eax
0x00001364 751b jne 0x1381
Let’s explore what happens if the jump is not taken.
We are not going to break down the assembly for this section, but we can see that printf is called and a string is present stating the input is not correct.
1
2
3
4
5
6
7
8
0x00001366 488d45dc lea rax, [s2]
0x0000136a 4889c6 mov rsi, rax
0x0000136d 488d05e40c.. lea rax, str.Sorry__s_is_not_the_right_input._n ; 0x2058 "Sorry %s is not the right input.\n"
0x00001374 4889c7 mov rdi, rax ; const char *format
0x00001377 b800000000 mov eax, 0
0x0000137c e88ffdffff call sym.imp.printf ; int printf(const char *format)
This is the path taken if the strcmp was equal to 0, meaning the strings were the same. This means whatever string is being checked here is not the correct input.
Let’s find out what string this was so we know not to use it.
Returning to the previous strcmp section, we can examine the params passed further. We can see that s1 and s2 are being loaded into the registers that are then moved into the param registers.
1
2
3
4
0x0000134f 488d55dc lea rdx, [s2]
0x00001353 488d45f4 lea rax, [s1]
0x00001357 4889d6 mov rsi, rdx ; const char *s2
0x0000135a 4889c7 mov rdi, rax ; const char *s1
Let’s find out what s1 and s2 are.
Looking at this section of code, we can see s2 and s1.
s2 is simply loaded as a local var with the value of 0x31. 0x00001297 66c745e83100 mov word [s2], 0x31 ; '1'

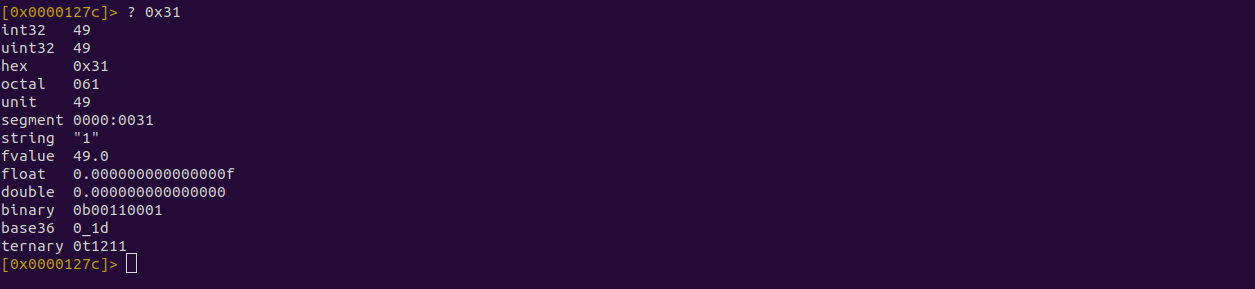

We can determine what this value is by using the ? <hex> command.

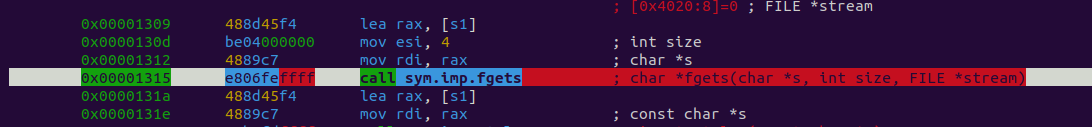

s1 is a bit more complicated to figure out, but we can see in these lines that it is being used with fgets.
fgets is used to get user input, and the first param of fgets is the var to store the input. Most likely s1 is storing the user input.
1
2
3
4
0x00001309 488d45f4 lea rax, [s1]
0x0000130d be04000000 mov esi, 4 ; int size
0x00001312 4889c7 mov rdi, rax ; char *s
0x00001315 e806feffff call sym.imp.fgets ; char *fgets(char *s, int size, FILE *stream)
By analyzing what s1 and s2 are, we have learned that the first strcmp is checking whether or not the user input is equal to the value 1. We also saw that if the user enters 1, the string “Sorry %s is not the right input.\n” is printed.
Let’s see what happens when the jump is taken.
jne 0x1381
This jump will jump to the address 0x1381, so let’s follow it.

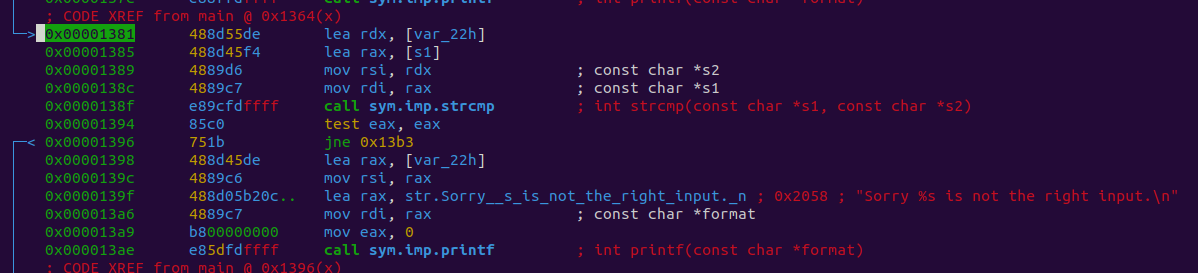

We end up at a similar-looking conditional.
This time there is no s2 but instead var_22h.
1
2
3
4
5
6
7
0x00001381 488d55de lea rdx, [var_22h]
0x00001385 488d45f4 lea rax, [s1]
0x00001389 4889d6 mov rsi, rdx ; const char *s2
0x0000138c 4889c7 mov rdi, rax ; const char *s1
0x0000138f e89cfdffff call sym.imp.strcmp ; int strcmp(const char *s1, const char *s2)
0x00001394 85c0 test eax, eax
0x00001396 751b jne 0x13b3
If we follow var_22h back, we can see this is local var with the value of 0x32 or 2.
Since this conditional is the same as the last, we can assume that the value 2 is also not the correct answer. Let’s follow the jump yet again.

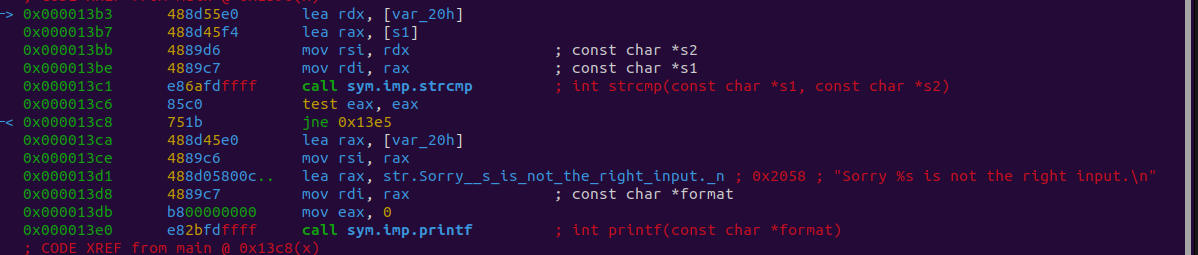

You will find it takes us to the same style of conditional.
Let’s follow the jumps until we get to a conditional that looks different.

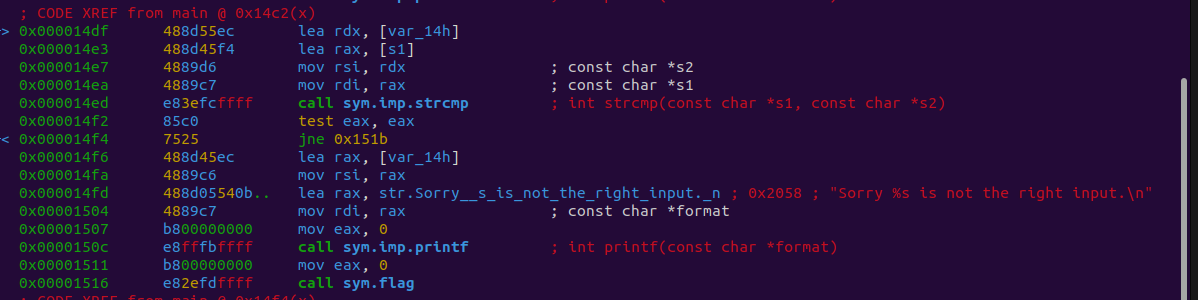

Found one.
This conditional looks the same except for one key difference: an additional set of instructions.
1
2
0x00001543 b800000000 mov eax, 0
0x00001548 e8c3fbffff call sym.imp.printf ; int printf(const char *format)
The function call looks like it could be useful to us as it is named flag.

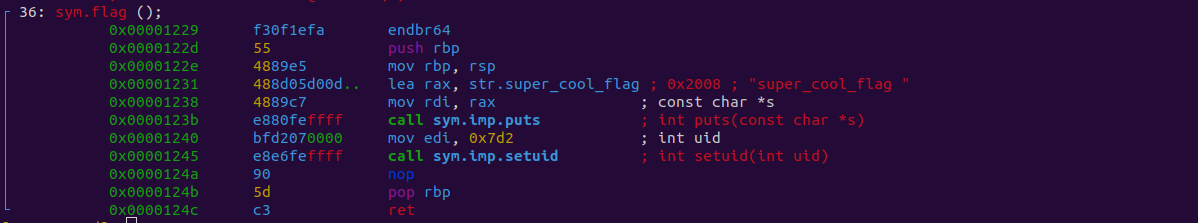

Let’s examine it using pdf @sym.flag. The @ symbol is used so we don’t lose our place at the main function. Essentially, it allows us to view the disassembled function without seeking to it.
Well, well, well…
This looks like the function we want as it appears to print out our flag.
Let’s go back to the conditional that got us here and see what input we need to use.
1
2
3
4
5
0x000014df 488d55ec lea rdx, [var_14h]
0x000014e3 488d45f4 lea rax, [s1]
0x000014e7 4889d6 mov rsi, rdx ; const char *s2
0x000014ea 4889c7 mov rdi, rax ; const char *s1
0x000014ed e83efcffff call sym.imp.strcmp ; int strcmp(const char *s1, const char *s2)
Looks like we need var_14h. Let’s go see what its value is.
1
│ 0x000012c7 66c745ec6500 mov word [var_14h], 0x65 ; 'e'
It has the value 0x65 or the ASCII char e.
Let’s run our program and see if we found the right input.
It worked, and we got our flag!
Hopefully, this guide can help you on your journey with reverse engineering and beyond as you explore the world of exploitation.
