An attacker has gained access to the supply chain of StoreD and has successfully uploaded malicious firmware to an environmental sensor which has then attempted to connect to many hosts on the network. Your task is to reverse engineer the firmware to discover what the device tries to do.

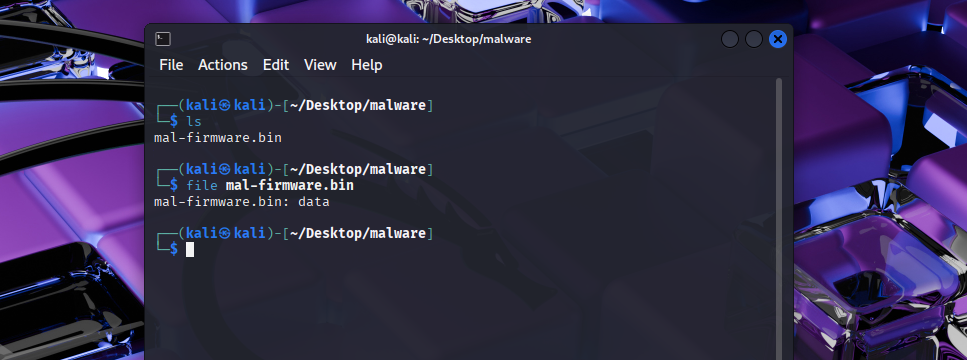

Initial Examination and Extraction:

I asked chatGPT to give me a rundown of the partition sections of the ESP32 and got the following:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65

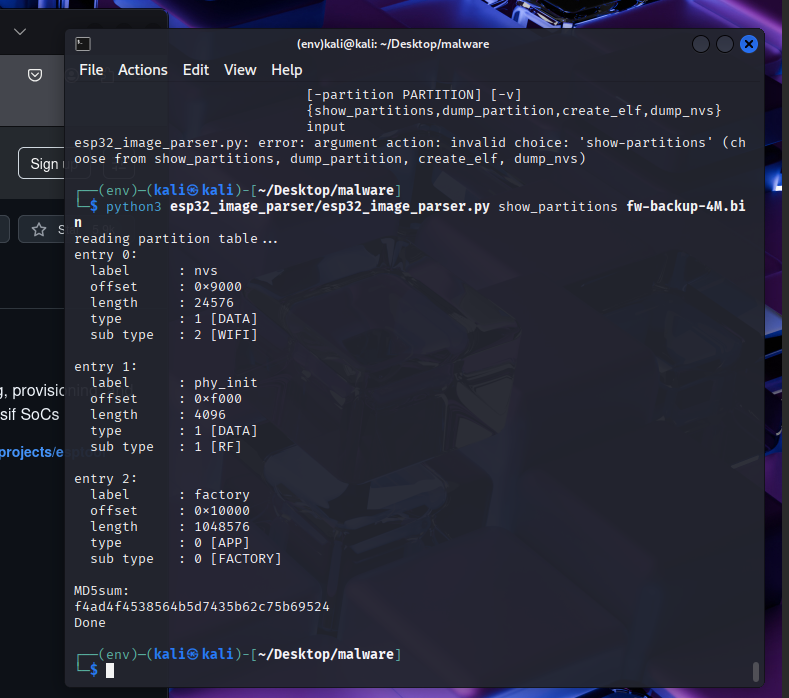

📋 General Partition Table Explanation (ESP32)

The ESP32 uses a partition table to define how flash memory is divided into sections. Each partition has attributes like:

    Label: A human-readable name

    Offset: Where the partition starts in flash (in bytes)

    Length: Size of the partition (in bytes)

    Type: What kind of data it holds (e.g., app code, data storage)

    Sub Type: More specific info about the type (e.g., WiFi settings, factory app)

Now, let's go through each entry:
🔹 Entry 0: nvs

    Label: nvs

    Offset: 0x9000 (36 KB into flash)

    Length: 24576 bytes (24 KB)

    Type: 1 [DATA]

    Sub Type: 2 [WIFI] — although usually subtype 2 is just "NVS", not strictly "WIFI" (might be a mislabel, but the intent is clear)

🔍 Purpose:
This is Non-Volatile Storage (NVS). It stores key-value data like:

    Wi-Fi credentials

    Calibration values

    App settings

🔹 Entry 1: phy_init

    Label: phy_init

    Offset: 0xf000 (60 KB)

    Length: 4096 bytes (4 KB)

    Type: 1 [DATA]

    Sub Type: 1 [RF]

🔍 Purpose:
This stores PHY (physical layer) initialization data, used to calibrate RF (radio frequency) settings like Wi-Fi or Bluetooth performance.
🔹 Entry 2: factory

    Label: factory

    Offset: 0x10000 (64 KB)

    Length: 1048576 bytes (1 MB)

    Type: 0 [APP]

    Sub Type: 0 [FACTORY]

🔍 Purpose:
This is the main application firmware partition. It’s called factory because it's the default image that's flashed during production. This is where your actual app runs from unless OTA (Over-the-Air update) changes it later.

This contains useful information regarding wifi connections and provides some anwsers to the questions below in the Analysis section.

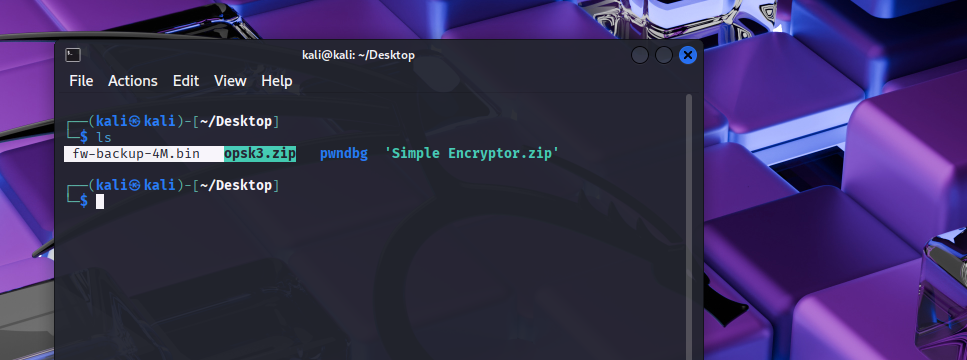

python3 esp32_image_parser.py dump_partition fw-backup-4M.bin -partition phy_init

python3 esp32_image_parser.py dump_partition fw-backup-4M.bin -partition factory_out.bin

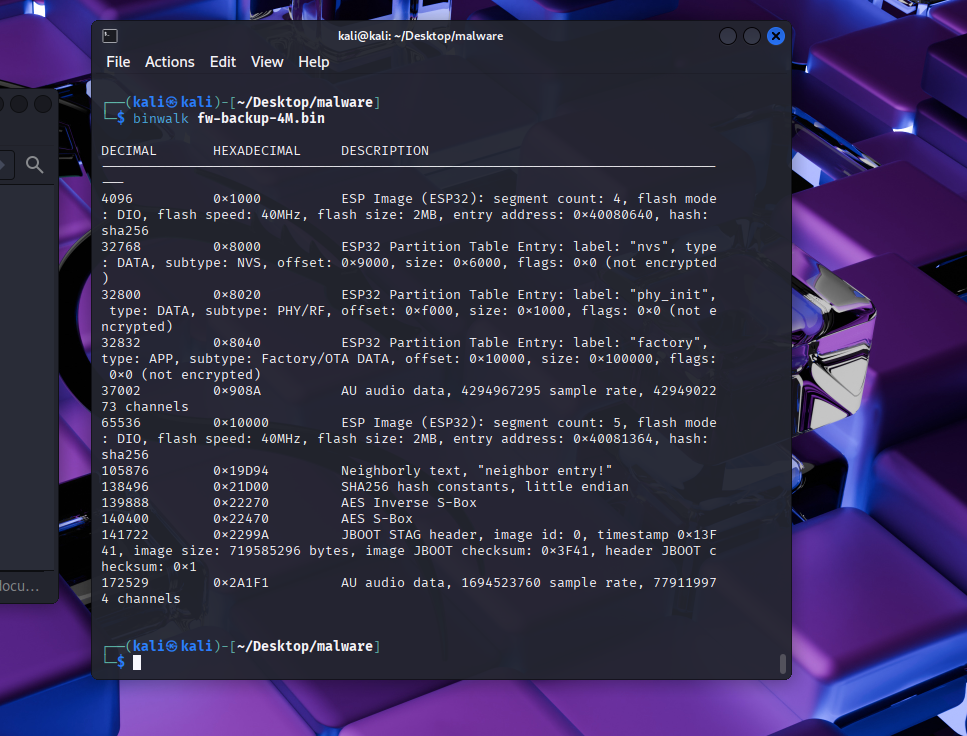

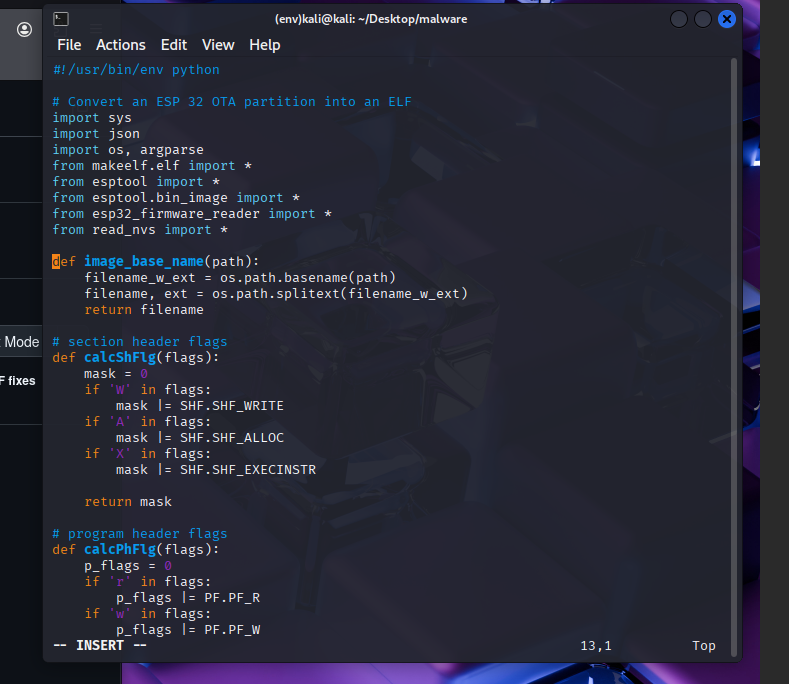

This is the crucial app section of the firmware and has a lot of infomation inside. We can pick through the bin file with strings but lets try to create an elf file so we can properly reverse and debug the program.

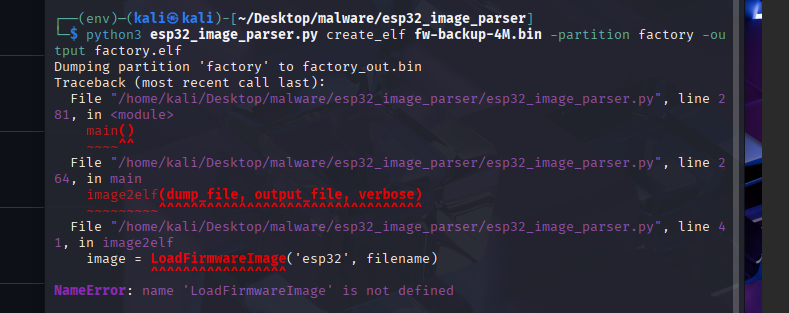

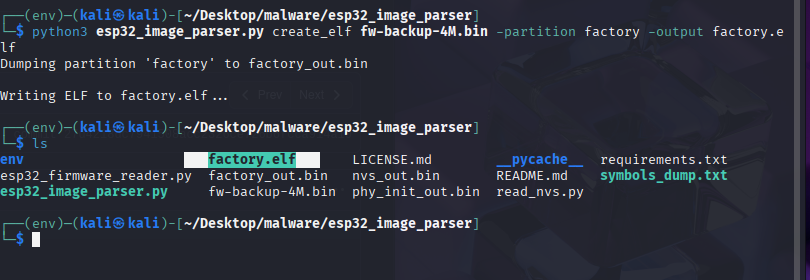

python3 esp32_image_parser.py create_elf fw-backup-4M.bin -partition factory -output factory.elf

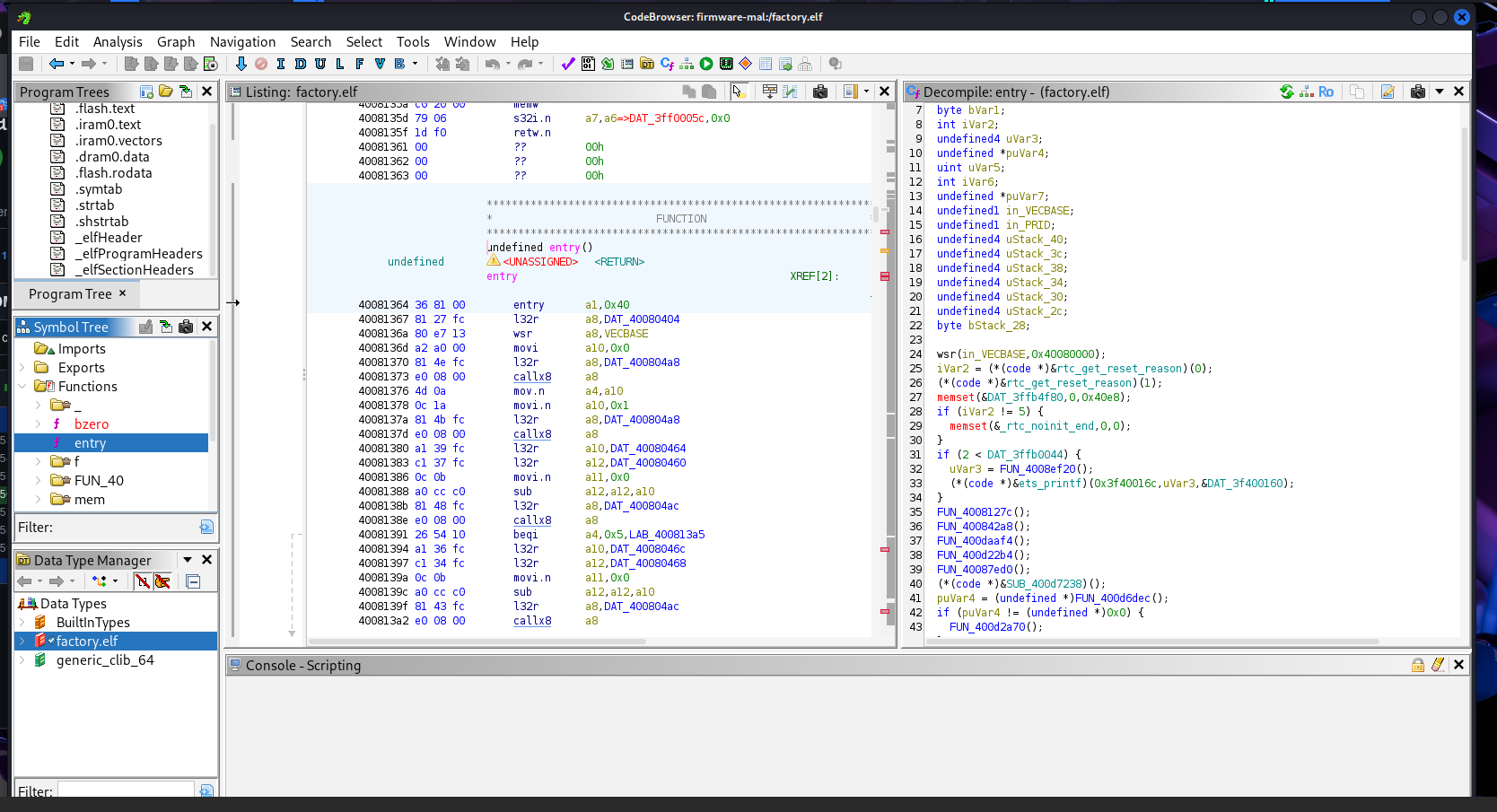

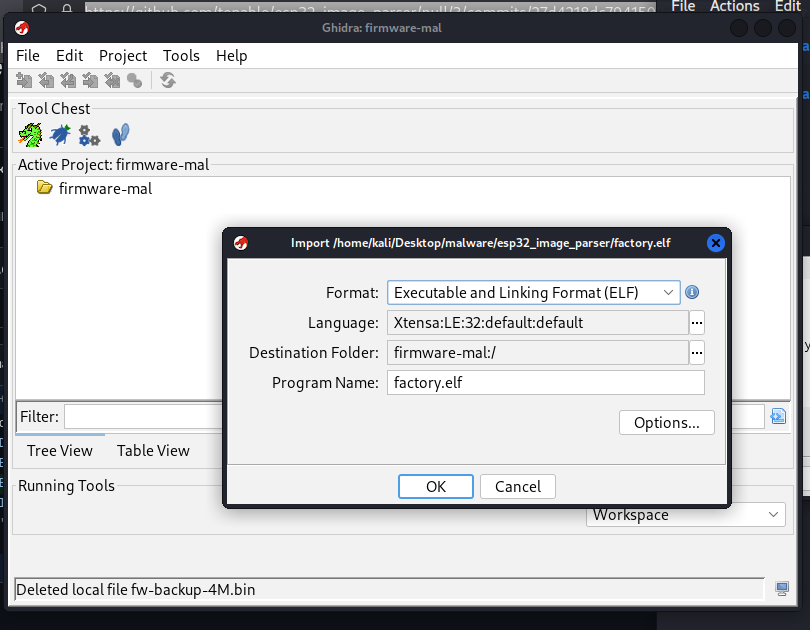

We can now open the file with ghidra using the Xtensa extension for the ESP32 chip.

Analysis and Reversing:

Task 1 and 2:

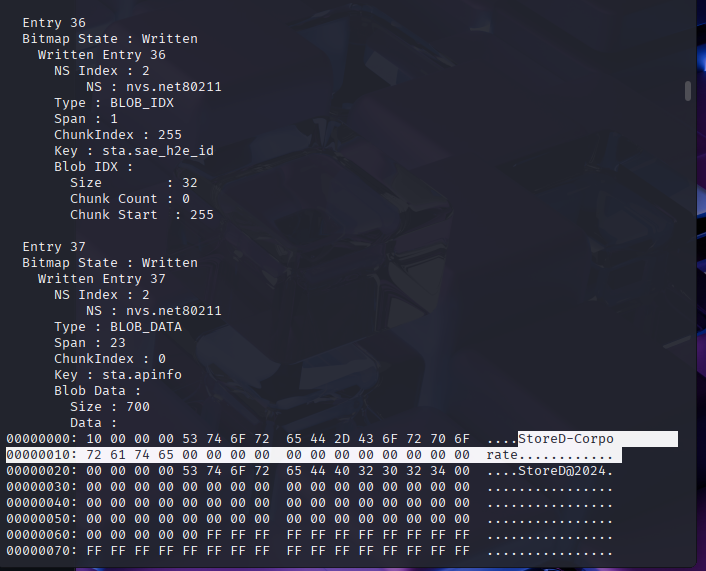

What WiFi network does the device connect to? and What was the WiFi password?

Analyzing:

Just for fun we can open up the packed binary in ida and see what it looks like.

Starting off we can see some calls to init the ssl crypto lib. This library is used with various crypto functions and encryption schemes.

Scrolling through the get_key_from_url function I think it’s worth it to get a debugger out (i’ll come back to this later on.)

Looking further through main we can find a handle_directory function call. It also takes "/share/" as an argument which matches the dir where our encrypted files are.

Task 7:

Task 6:

Task 1:

Debugging for the key:

rb.gy is a URL shortener which is used to shorten URLs. I threw this into virus total just to get an idea of what it could be doing.

Task 5:

Examining further in cutter we can see that the malware uses memcpy to copy only the first 32 bytes.

Now we need to deal with the IV. We should be able to find the IV value by searching for the EVP_EncryptInit_ex function.

1
2
3
4
5
6
7
8
9
10
11
12
13
ctx: Your initialized EVP_CIPHER_CTX *.


EVP_aes_256_cbc(): Specifies AES with 256-bit key in CBC mode.


NULL: Use default software crypto engine.


key: Your encryption key.


iv: Initialization Vector (or NULL if you want zero IV).
